Info on Kenny Kopeckys' WSMC 2005 Championship winning 749R-04
(this same bike won the 2006 and 2007 WSMC BOTT Middleweight Class Championships with other racers aboard it!)

Home Page | Contact Info | Racer Profile | Ducati 999R Info | Table of Contents

2004 DUCATI 749R-04


Photo courtesy of the Deken Devils!

Kenny Kopecky - WSMC #27 1992-2010
WSMC #1 in 2006

This page has more info specific to what we used on our 2004 Ducati 749R for roadracing

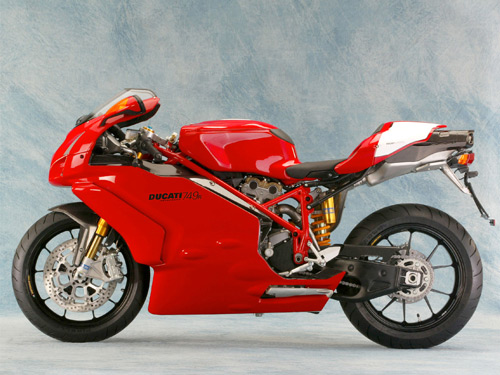

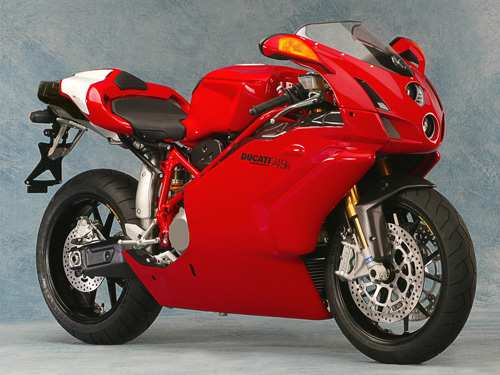

Stock Ducati 749R pics from Ducati.com

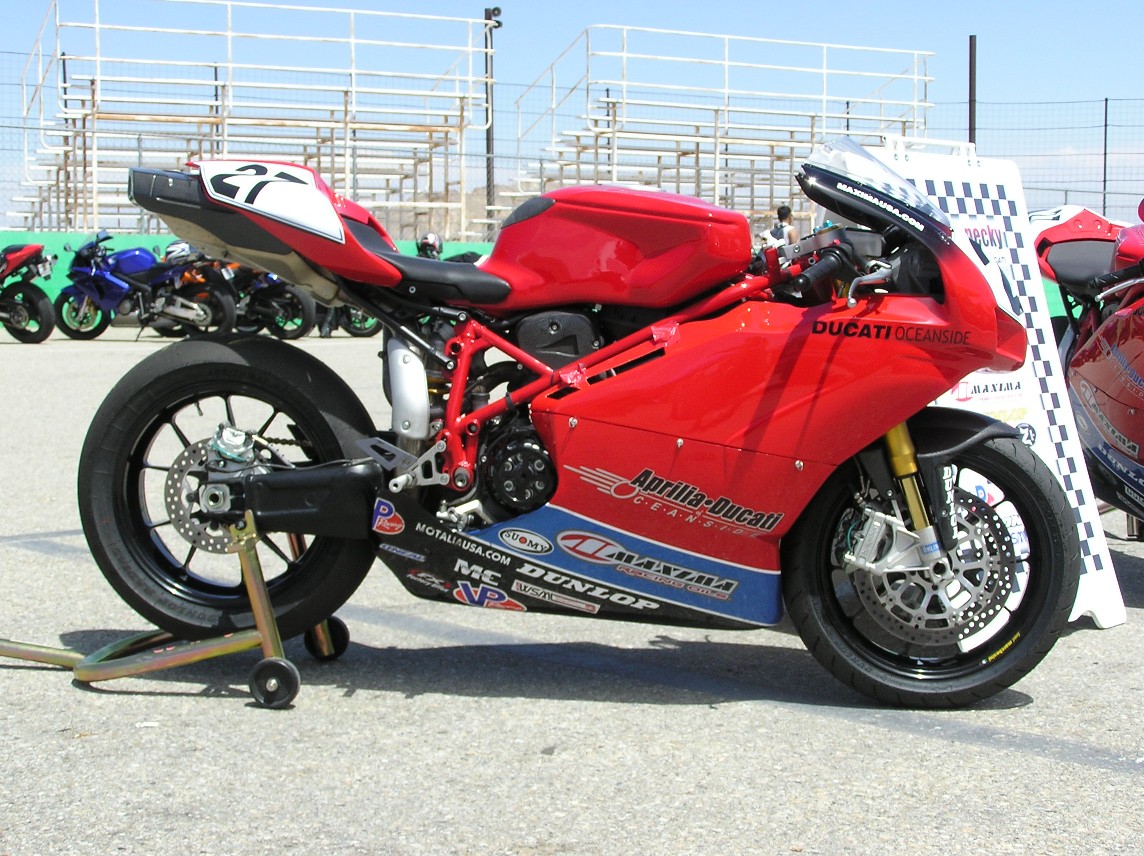

Kenny Kopecky's Ducati 749R04 after winning BOTT Middleweight at WSMC / Aug 2004
Photo by Dana Kopecky


12-19-04 leading BOTT Midd at WSMC
Photo courtesy of Steve Galle

January 2005 to January 2006: BOTT Middleweight... 13 starts and 13 wins

Fastest race lap on 749R-04: 1:24.3 on Nov. 20, 2005 en route to winning 650 Superbike



DUCATI 749R CHASSIS (stock info from Ducati website)
Frame Tubular ALS450 steel trellis
Wheelbase 1420 mm / 55.9 in
Rake 23.5░¸24.5░
Front suspension Íhlins upside-down fully adjustable fork with TiN surface treatment, for radial calipers
Front wheel travel 120 mm / 4.7 in
Front brake 2 x 320 mm semi-floating discs, 4-piston 4-pad calipers
Front wheel New Y-shaped 5 spoke design light alloy forged 3.50x17
Front tyre 120/70 ZR 17
Rear suspension Progressive linkage with fully adjustable Íhlins monoshock
Rear wheel travel 128 mm / 5 in
Rear brake 240 mm disc, 2-piston caliper
Rear wheel New Y-shaped 5 spoke design light alloy forged 5.50x17
Rear tyre 180/50 ZR 17
Fuel tank capacity 18,3 l / 4,8 US gal(including 3 l / 0,8 US gal reserve)
Weight * 192 kg / 439 lbs
Seat height 780 mm / 30,7 in
Instruments Speedometer, rev counter, high beam indicator, turn signals, oil pressure warning light, low fuel warning light, neutral light, water temperature. Immobilizer
Warranty 2 years unlimited mileage
Tank Colours Red
Frame and Wheel colours Red frame, black wheels
Versions One seats
DUCATI 749R ENGINE (stock info from Ducati website)

Type L twin cylinder, 4 valve per cylinder Desmodromic; liquid cooled

Displacement 749 cc

BorexStroke 94x54 mm

Compression Ratio 12,7:1

Power 86.5 kW - 118 HP @ 10250 rpm
Torque 81.5 Nm - 8,31 Kgm @ 8250 rpm

Fuel injection Marelli electronic fuel injection, 54 mm throttle body
Exhaust Single steel muffler with catalytic converter
Emissions Euro2

Transmission Gearbox 6 speed
Ratios 1st 37/15, 2nd 30/17, 3th 28/20, 4th 26/22, 5th 24/23, 6th 23/24
Primary drive Straight cut gears; ratio 2,11
Final drive Chain; Front sprocket 15; Rear sprocket 35

Clutch Dry multiplate with hydraulic control slipper clutch



Special thanks to:
